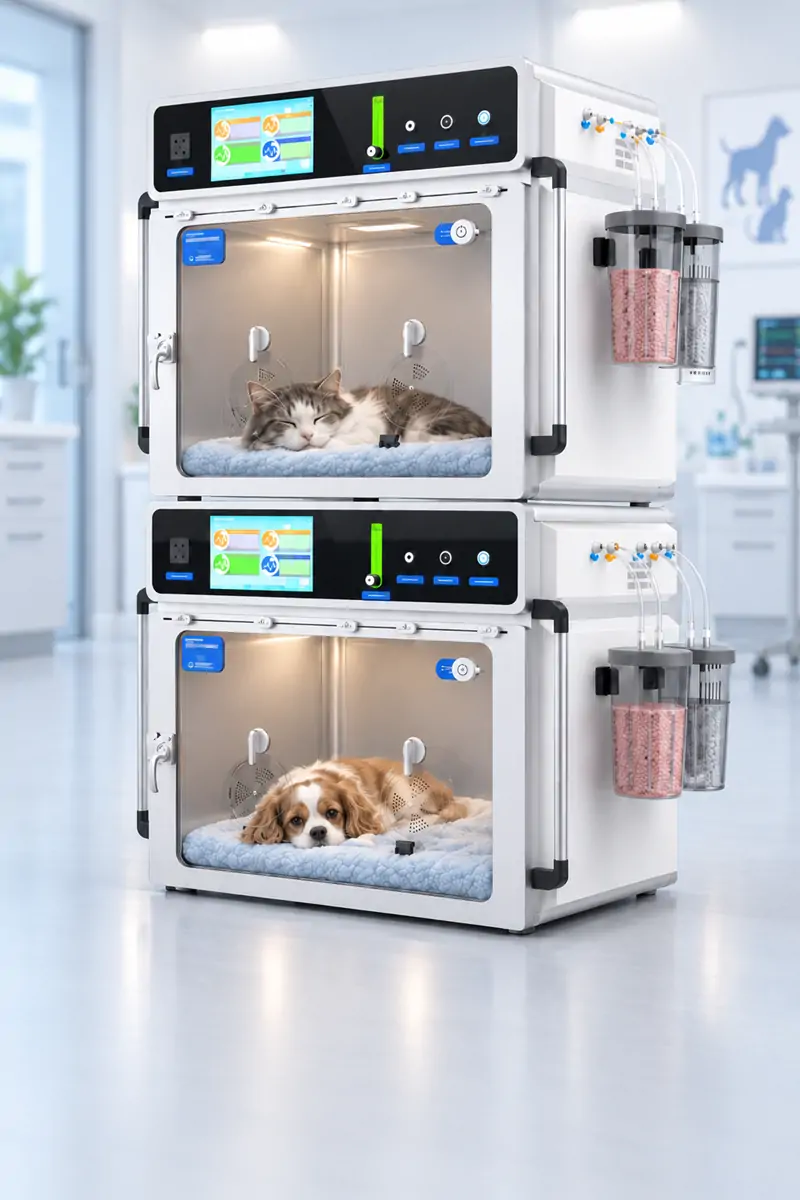

DERRY XS1 Veterinary ICU Chamber
Integrated Oxygen, Temperature, Humidity & CO₂ Management for Veterinary Critical Care
The DERRY XS1 provides a controlled ICU environment for veterinary critical care, combining adjustable oxygen, active temperature control, humidity management and automatic CO₂ removal in one chamber.
Need help choosing a configuration? Talk to a product specialist.
Built for Multiple Veterinary Critical-Care Applications
From post-operative recovery to oxygen-supported intensive care, XS1 provides a controlled environment for a range of veterinary critical-care needs.
Recovery
Support recovering animals with controlled temperature and oxygen conditions after surgery.
Oxygen Support
Provide an oxygen-enriched environment with adjustable oxygen concentration from 21% to 80%.
Respiratory Care
Support patients requiring closer respiratory observation and controlled oxygen conditions.
Intensive Care
Provide a stable chamber environment for continuous observation and supportive care.
Need a Complete Veterinary ICU Equipment Solution?
Explore Veterinary ICU EquipmentWhy a Veterinary ICU Chamber Needs More Than Oxygen Control
Oxygen is only one part of a controlled ICU environment. Temperature, humidity, CO₂ and air circulation also need active management.
Oxygen Alone Is Not Enough
Temperature, humidity and air quality can change during prolonged hospitalization.
→ Integrated O₂, Temperature, Humidity & CO₂ Management
CO₂ Can Accumulate
Animals continuously exhale carbon dioxide inside an enclosed chamber.
→ Automatic CO₂ Monitoring & Removal
ICU Environment Control
Door Opening Disturbs the Environment
Frequent door opening can cause rapid changes in chamber temperature and oxygen concentration.
→ Dedicated Operation Window
Power Failure Interrupts ICU Control
Loss of external power can interrupt environmental management.
→ Approx. 15-Minute Emergency Ventilation Backup
Integrated Environmental Control for Veterinary Intensive Care
XS1 brings six key environmental functions together in one veterinary ICU chamber, helping manage oxygen, temperature, CO₂, humidity, air quality and nebulization from a centralized control system.
Adjustable Oxygen Control
Adjust oxygen concentration from 21% to 80%, with 1% setting precision and ±1% control accuracy for controlled oxygen-supported care.
Active Heating & Cooling
PTC heating and compressor cooling provide two-way temperature control with ±0.5°C accuracy, helping maintain a controlled chamber temperature.
CO₂ Monitoring & Automatic Removal
Continuously monitor chamber CO₂ levels and automatically activate the external adsorption system when the configured threshold is exceeded.
Active Humidity Management
Combine water-filtration humidification with condensation dehumidification to actively manage humidity inside the ICU chamber.
Air Purification & Odor Management
Combine negative-ion purification with the water-filtration system to support cleaner cabin air and odor management during hospitalization.
Integrated Nebulization
Connect nebulization therapy directly to the ICU chamber, with ≥0.2 ml/min output and 0.5–2 μm particle size.
XS1 ICU Environment Control System
Oxygen Control | Temperature Control | CO₂ Removal | Humidity Control | Air Purification | Nebulization
Veterinary ICU Chamber vs. Standard Oxygen Cage
Both can provide an oxygen-enriched environment, but an integrated veterinary ICU chamber can combine oxygen support with broader environmental control for critical-care applications.
| Capability | Typical Oxygen Cage | DERRY XS1 ICU Chamber |
|---|---|---|
| Oxygen-Enriched Environment | ✓ | ✓ 21–80% Adjustable O₂ |
| Active Heating & Cooling | Varies | ✓ PTC Heating + Compressor Cooling |
| Humidity Management | Varies | ✓ Humidification + Dehumidification |
| CO₂ Monitoring & Removal | Varies | ✓ Monitoring + Automatic Removal |
| Emergency Ventilation Backup | Varies | ✓ Approx. 15-Min Backup |
| Integrated Nebulization | Varies | ✓ ≥0.2 ml/min · 0.5–2 μm |
What is the difference between a veterinary ICU chamber and an oxygen cage?
A veterinary oxygen cage primarily provides an oxygen-enriched environment, while an integrated veterinary ICU chamber can combine oxygen support with temperature, humidity, CO₂ and other environmental controls. The DERRY XS1 integrates these functions into one critical-care chamber.
Safety Features Designed for Daily Veterinary ICU Workflows
Practical features help support patient access, continuous infusion, clinical observation and emergency response during ICU care.
15-Minute Emergency Ventilation Backup
During a power failure, the built-in backup battery supports external air circulation for approximately 15 minutes, providing time for staff to respond or transfer the patient.
Care Without Fully Opening the Chamber
The dedicated operation window supports basic care and observation while helping minimize rapid changes in chamber temperature and oxygen concentration.
Integrated Infusion Workflow
A dedicated fixing point supports an infusion pump alongside the chamber, helping organize continuous infusion during ICU care.
Explore DERRY Veterinary Infusion Pump
Lighting for Observation & Examination
10-level adjustable warm ambient lighting and a separate white medical examination light support routine observation inside the chamber.
DERRY XS1 Veterinary ICU Chamber Specifications
Review the key specifications for distributor evaluation, veterinary hospital planning and equipment procurement.
| Physical & Electrical | |
|---|---|
| Dimensions | 106 × 80 × 74 cm |
| Weight | 90 kg |
| Power Supply | AC220V, 50/60Hz |
| Display | 10" HD TFT Touchscreen |
| Wi-Fi / APP Control | Optional |
| Environmental Control | |
| Oxygen Control Range | 21–80% |
| Oxygen Accuracy | ±1% |
| Temperature Accuracy | ±0.5°C |
| Chamber Temperature Difference | ±1°C |
| Humidity Control Accuracy | Deviation ≤10% |
| Chamber Noise | ≤60 dB |
| Therapy & Safety | |
| Nebulization Rate | ≥0.2 ml/min |
| Nebulization Particle Size | 0.5–2 μm |
| Emergency Air Circulation | Approx. 15 min after power failure |
Why Distributors Source Veterinary ICU Equipment Through DERRY
Source ICU, monitoring, infusion and other critical-care equipment through one coordinated veterinary equipment supply chain.
One-Stop Veterinary Equipment Sourcing
Source ICU, monitoring, infusion and supporting equipment through one coordinated supply chain.
Product & Configuration Matching
Match equipment and configurations with your target market, customer type and clinical application.
Distributor Sales Support
Access specifications, product images, catalogs and sales materials for local distribution.
Coordinated Supply & Delivery
Consolidate multiple veterinary equipment categories into a more efficient purchasing and delivery process.
Build a Complete Veterinary Critical-Care Solution
Veterinary ICU Chamber Buying Guide & FAQs
What is a veterinary ICU chamber?
What is the difference between a veterinary ICU chamber and an oxygen cage?
What oxygen concentration can the DERRY XS1 provide?
How does the XS1 manage carbon dioxide?
Does the XS1 provide emergency ventilation during a power failure?
What should buyers consider when choosing a veterinary ICU chamber?
Can I request distributor pricing for the XS1?
Request XS1 Specifications & Distributor Pricing
Tell us your market, required quantity and application. DERRY will provide XS1 specifications, configuration support and distributor quotation information.
